簡介brief introduction

本機廣泛適用于制藥、化工、食品等行業的干粉物料混合，對不同比重和不同粒度的幾種物料也能進行快速而均勻的混合。該機利用獨特的三角擺動，平移轉動及搖滾原理，產生一股強力的交替脈沖運動，連續不斷地推動進行混合物料，其產生的渦流具有變化的能量梯度，從而能產生出色的混合效果。該機還具有運轉平穩、噪音低，裝載系數高、混合時間短等優點。
This machine is widely applicable for the mixing of dry powder materials in industries such as pharmaceuticals, chemicals, and food. It can also quickly and evenly mix several materials of different densities and particle sizes. By utilizing the unique triangular oscillation, translational rotation and rocking principles, it generates a powerful alternating pulse movement, continuously pushing the mixed materials. The resulting vortex has a variable energy gradient, thereby achieving excellent mixing results. This machine also has the advantages of smooth operation, low noise, high loading capacity, and short mixing time.

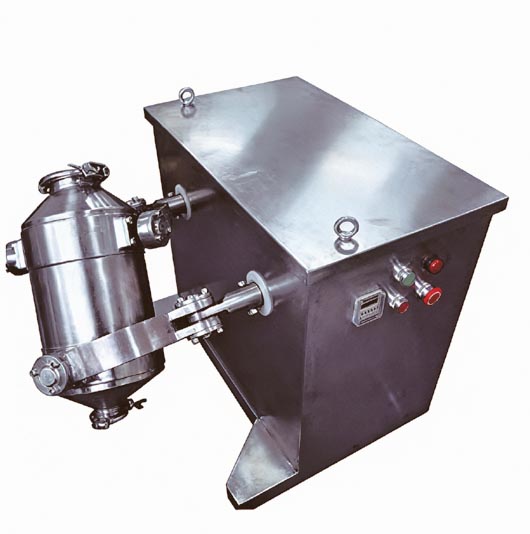

該機有機座、變頻制動電機主軸、回轉連桿及筒體等部分組成。裝料的筒體在主動軸的帶動下作平行移動及搖滾等復合運動，促使物料沿著筒體作環向、徑向和軸向的三向復合運動，從而實現多種物料的相互流動擴散、摻雜，以達到高均勻混合的目的。
This machine is composed of a base, a variable-frequency braking motor spindle, a rotating connecting rod and a cylinder, etc. The loading cylinder moves in parallel and performs rocking and other compound movements under the drive of the driving shaft, which promotes the material to make three-way compound movements along the circumferential, radial and axial directions within the cylinder, thereby achieving the mutual flow and diffusion, and blending of various materials, in order to achieve the goal of high uniform mixing.

用途及特點 Usage and Features

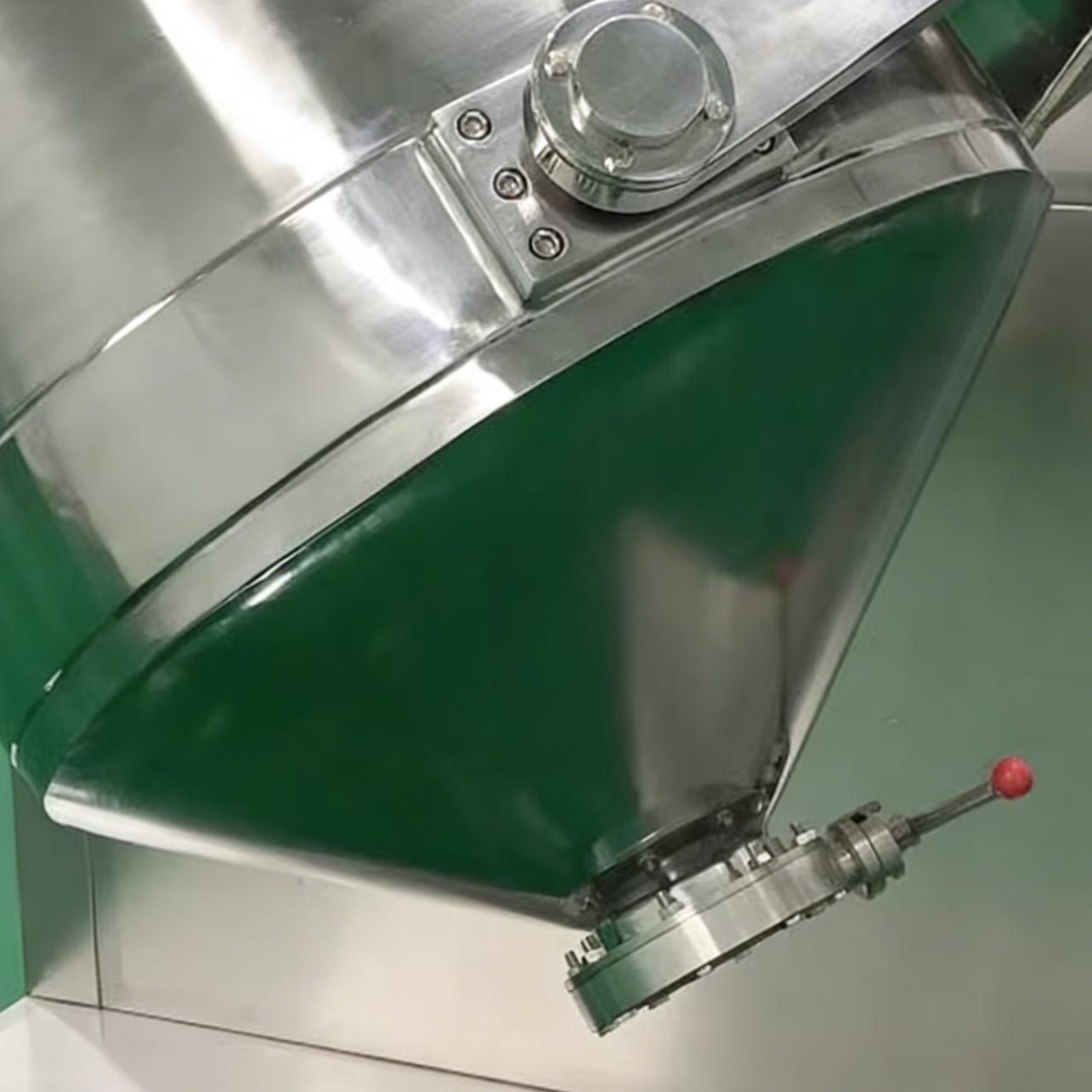

該機用于制藥、化工、食品、輕工、電子、機械、礦冶、國防工業以及各科研單位的粉狀、顆料狀物料的高均勻度混合。物料無離心力作用，無比重偏析及分層、積聚現象，各組分可有懸殊的重量比，混合率達99.9%以上，是目前各種混合機中的一種較理想產品。裝料率大，最高可達80%（普通混合機僅為40%），效率高，混合時間短。筒體各處為圓弧過渡，并經過精密拋光處理，達到GMP要求。
This machine is used for high uniformity mixing of powder and granular materials in industries such as pharmaceuticals, chemicals, food, light industry, electronics, machinery, mining and metallurgy, defense industry, and various research institutions. The materials are not subjected to centrifugal force, and there is no phenomenon of weight segregation or stratification, accumulation, etc. The components can have a wide range of weight ratios, and the mixing rate can reach over 99.9%. It is a relatively ideal product among various mixing machines at present. The loading rate is high, up to 80% (while ordinary mixing machines only reach 40%), with high efficiency and short mixing time. The entire cylinder has a smooth arc transition and has undergone precise polishing treatment, meeting GMP requirements.

工作原理 working principle

裝料的筒體在主動軸的帶動下，作周而復始的平移轉動和翻滾等復合運動，促使物料沿著筒體作環向、徑向和軸向的三向復合運動，從而實現多種物料的相互流動、擴散、積聚、摻雜，達到均勻混合的目的。
The loading cylinder, driven by the main shaft, undergoes repetitive translational rotation and rolling motions, etc., which enables the materials to perform three-dimensional combined movements along the circumferential, radial and axial directions within the cylinder. This promotes the mutual flow, diffusion, accumulation and admixture of various materials, achieving the goal of uniform mixing.
